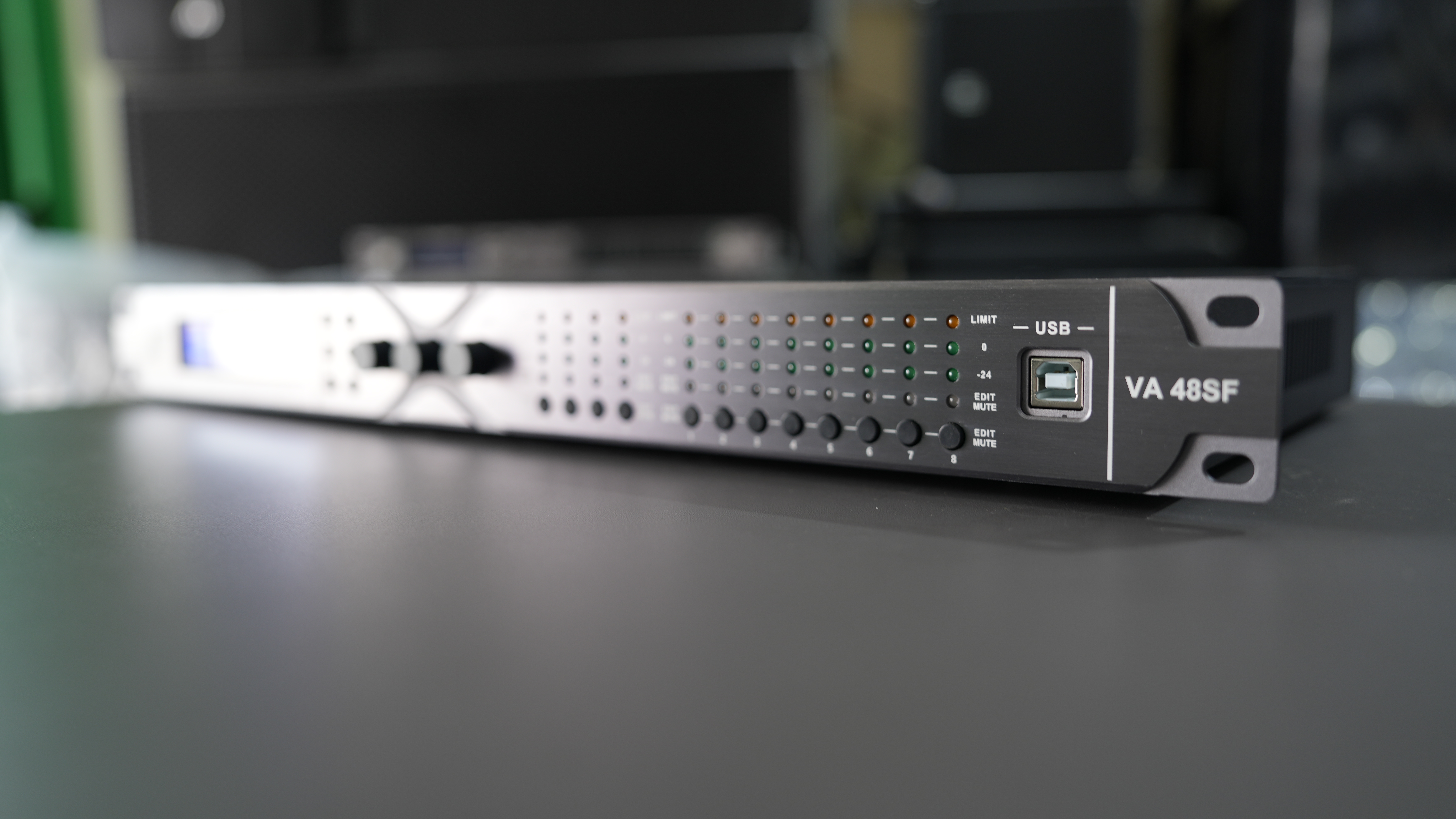

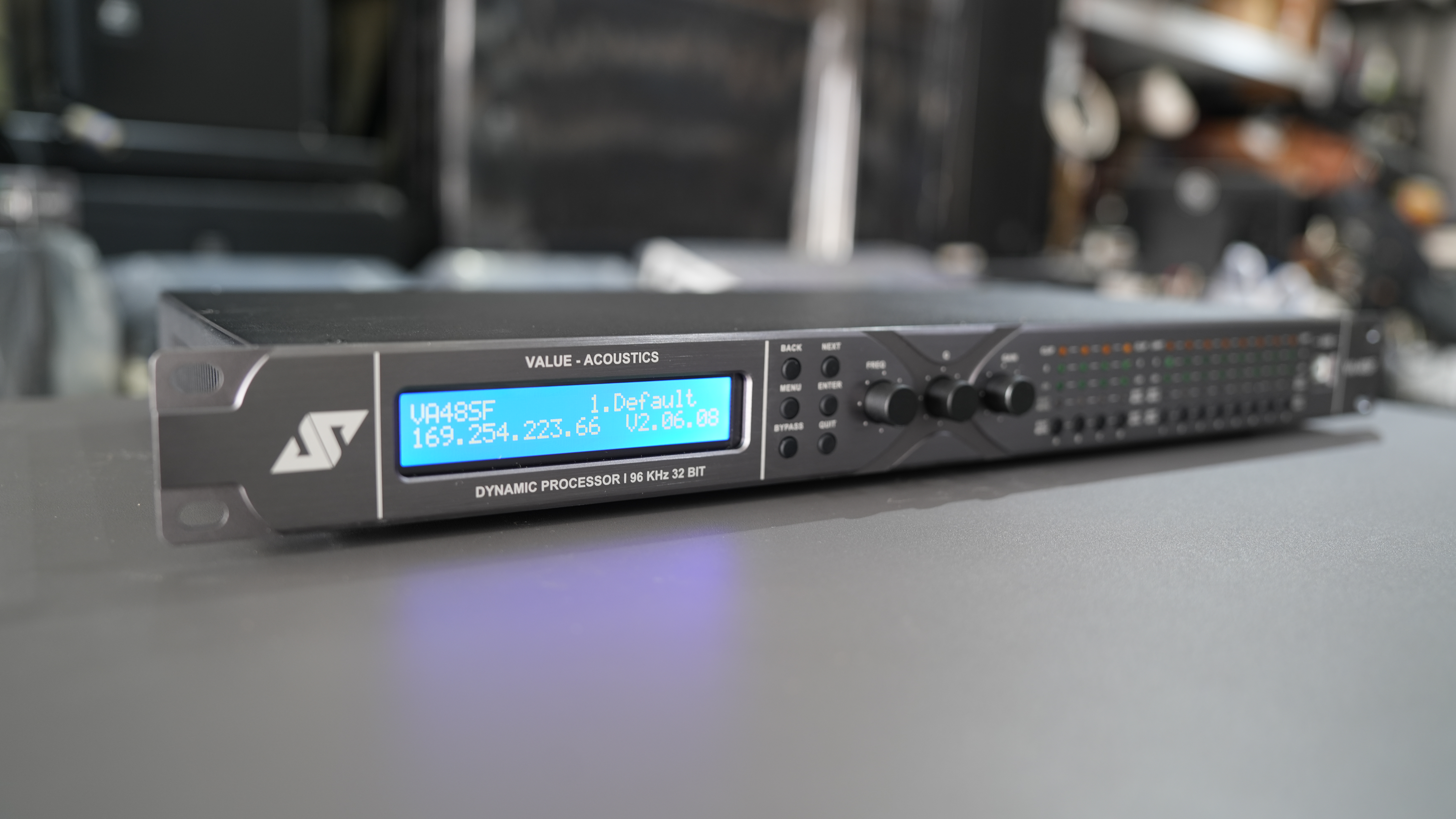

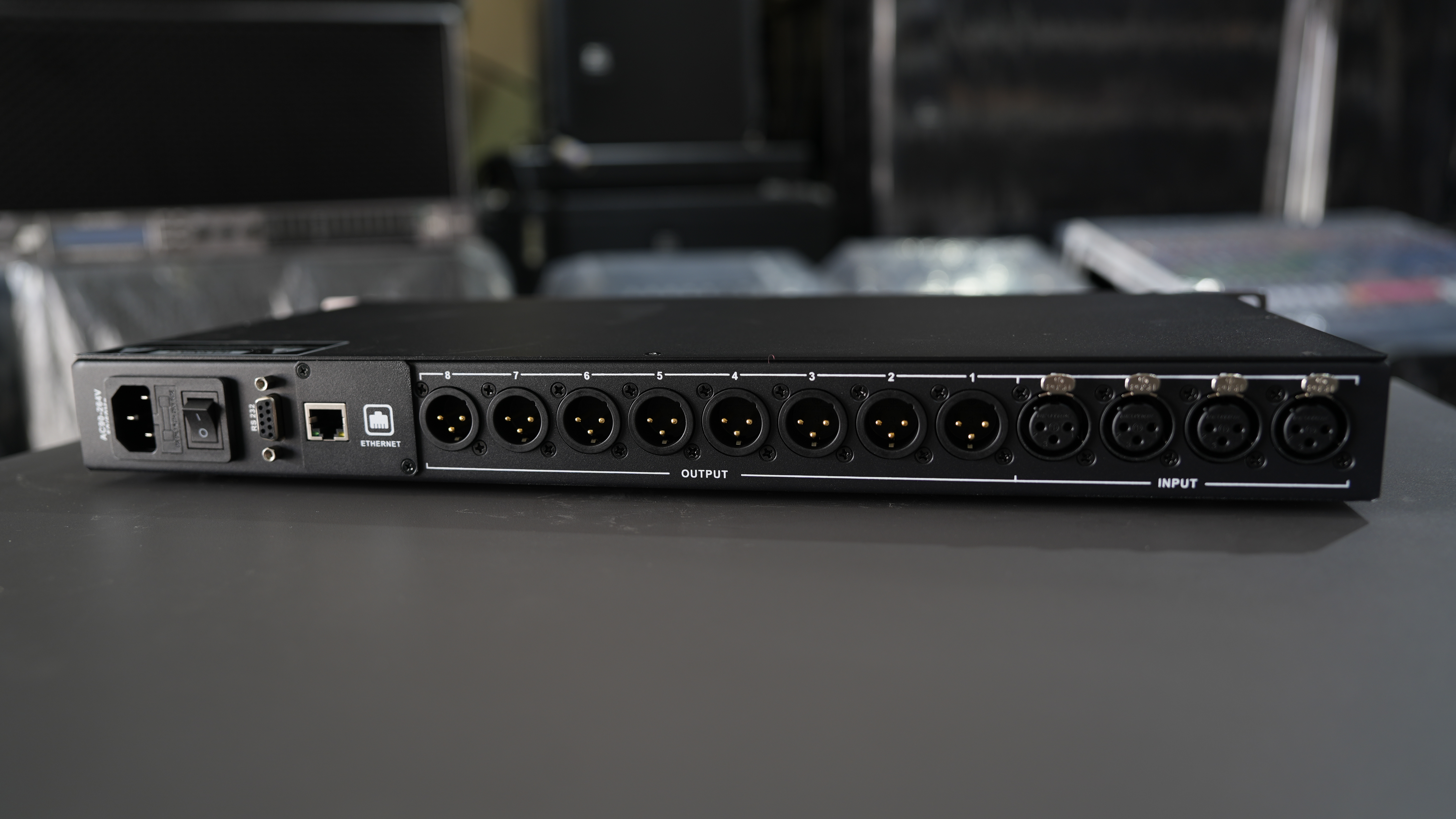

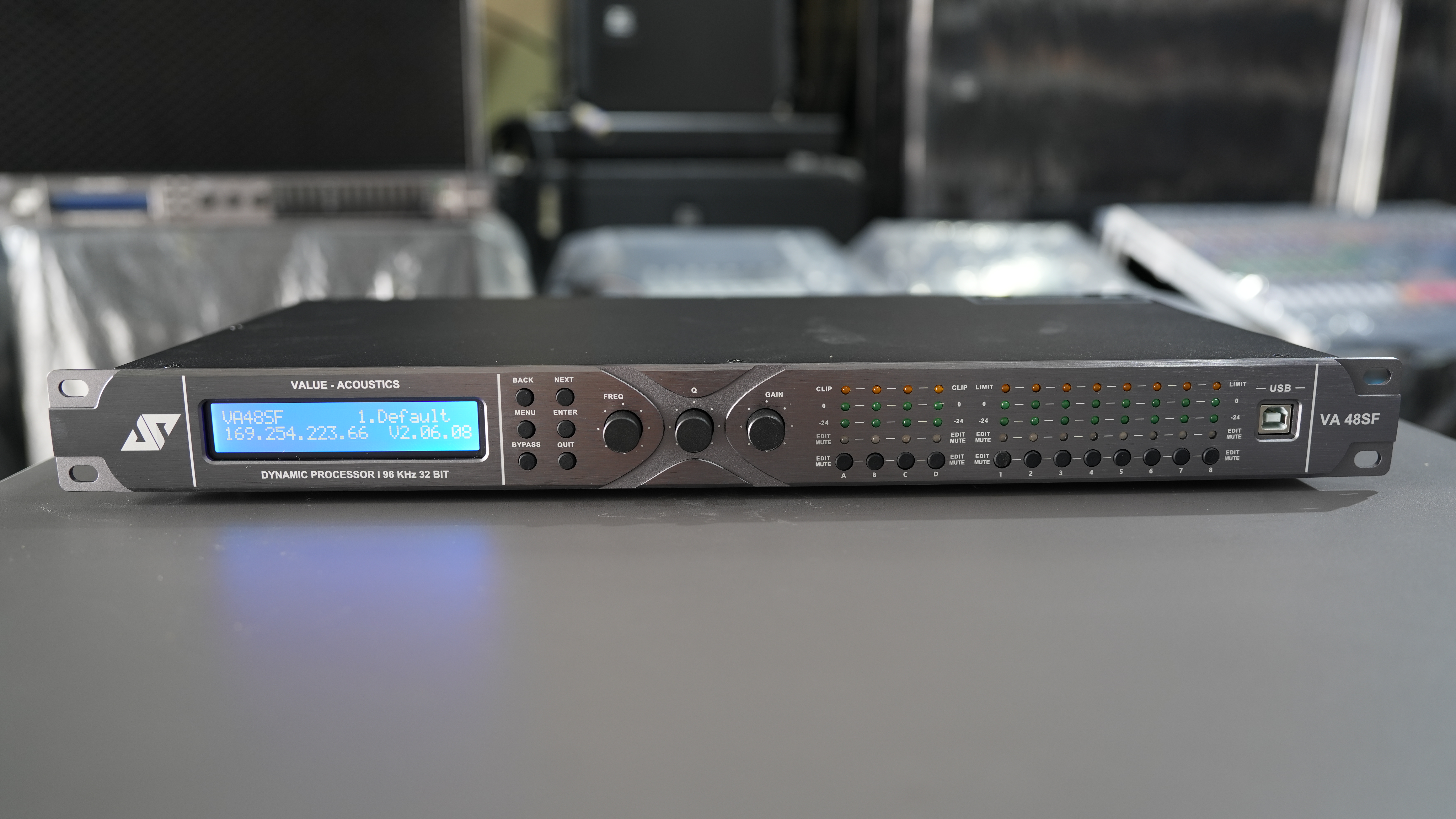

Dynamic Prosessor Premium Value Acoustics VA-48SF

Dynamic Prosessor Premium Value Acoustics VA-48SF 4in 8out

Rp5499000.00Rp4799000.00

Dynamic Prosessor Premium Value Acoustics VA-48S

Di desain dengan pemilihan komponen elektronik premium,

Chip Prossesor Terbaru Untuk kebutuhan prosesing data lebih Extreme.

fiture:

4analog inputs and 8 analog outputs.
High performance DSP process, 96khz 32bit sampling rate.
Input with 15 bands PEQ, output with 10 bands PEQ.
Support HPF and LPF with Butterworth\Bessel\Linkwitz-Riley. Support LSLV and
HSLV,ALL-PASS filters.
Input with 3 bands Dynamic EQ.
Input with 4 x 512Taps FIR linear phase setting.
Outputwith 8x 256Taps FIR linear phase setting.
Support presets archiving and locking, hide setting parameters.
Control connections: USB or TCP/IP. Configured with RS232 central control
connection.
Nice GUI windows 7/8/10/11 software

deskripsi:

Dynamic Prosessor Value ACoustics VA-48SF

1.DSP Process

Process: ADI SHARC 21489 450MHz 32-bit 96KHz

2.Analog Audio Inputs and Outputs

Input: 4channels balanced.
Input interface: XLR(Neutrik®)
Input impedance: 20KΩ
Maxinput level: 16dBu/Line
Output: 8channels balanced.Linelevel
Output interface: XLR(Neutrik®)
Output impedance: 150Ω

3.Audio Performance Specifications

Frequency response: 20Hz-20kHz(+-0.5dB)/Line
THD+N:-90dB(@0dBu,1kHz,A-wt)/Line
Ground noise: 20Hz-20kHz,A-wt,-93dBu
SNR: 108dB(@16dBu,1kHz,A-wt)/Line

4.Connect Ports and Indicators

USB: TypeA-B, freedriver
RS232: Serial port communication
TCP/IP interface: RJ-45
Indicator light: Clip, level,edit,mute

5.Electrical and Physical

Supply: AC100V～240V50/60Hz
Products Dimensions 483mmx215mmx44.5mm
Packaged Dimensions 537mmx343mmx77mm
Net Weight 3.6kg
Packaged Weight 4.0kg
Operating temperature:-20℃～80℃
