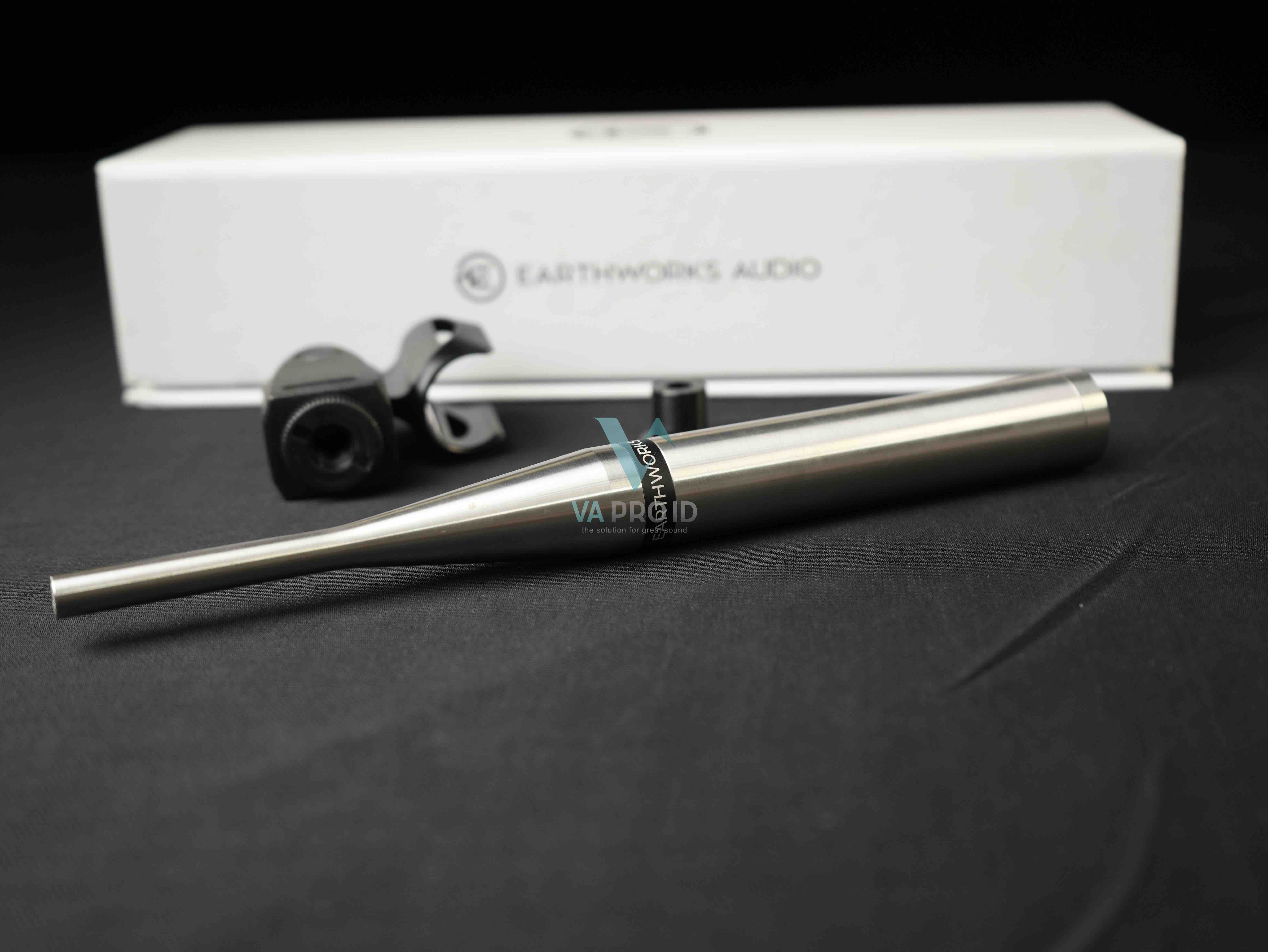

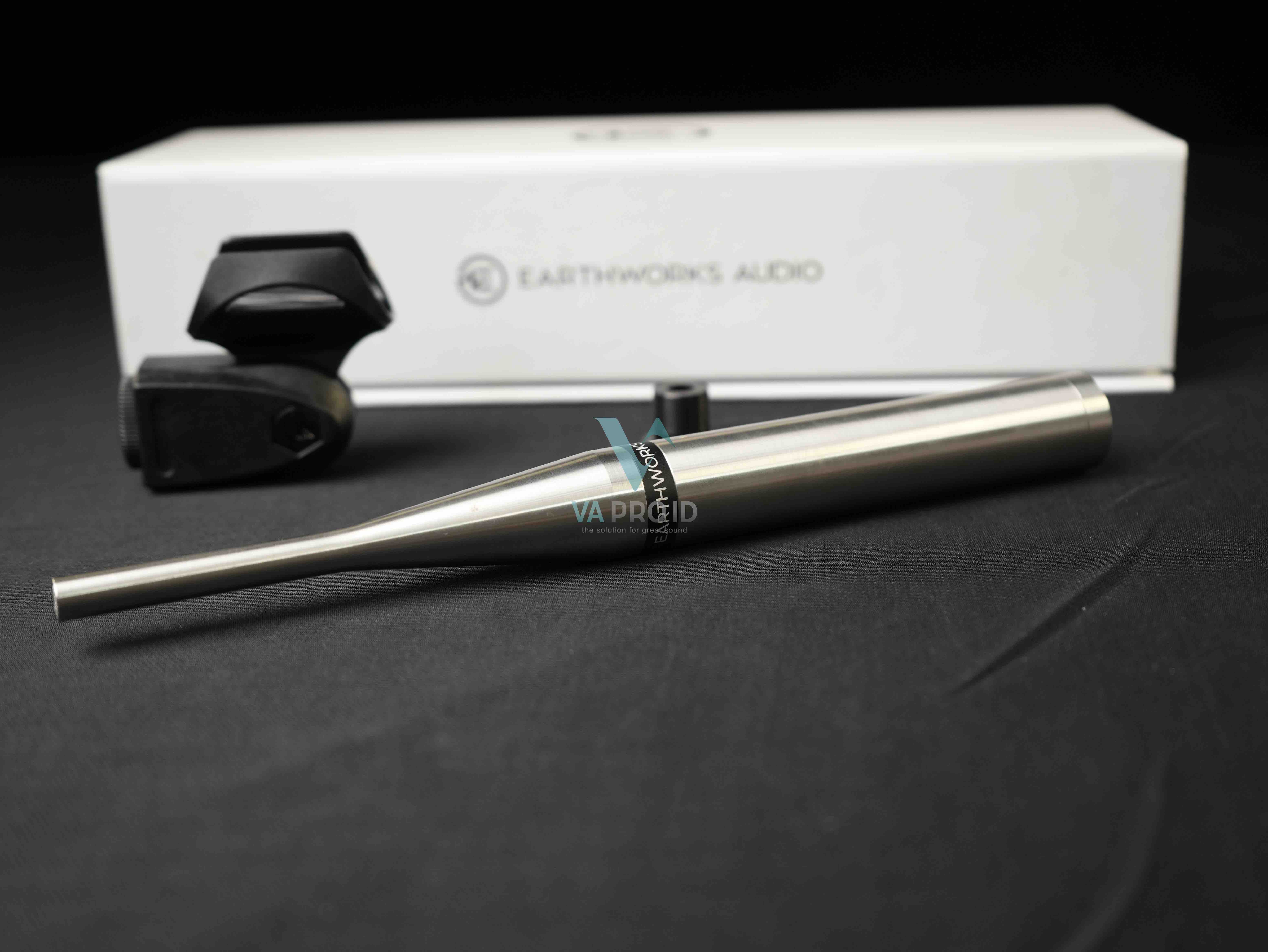

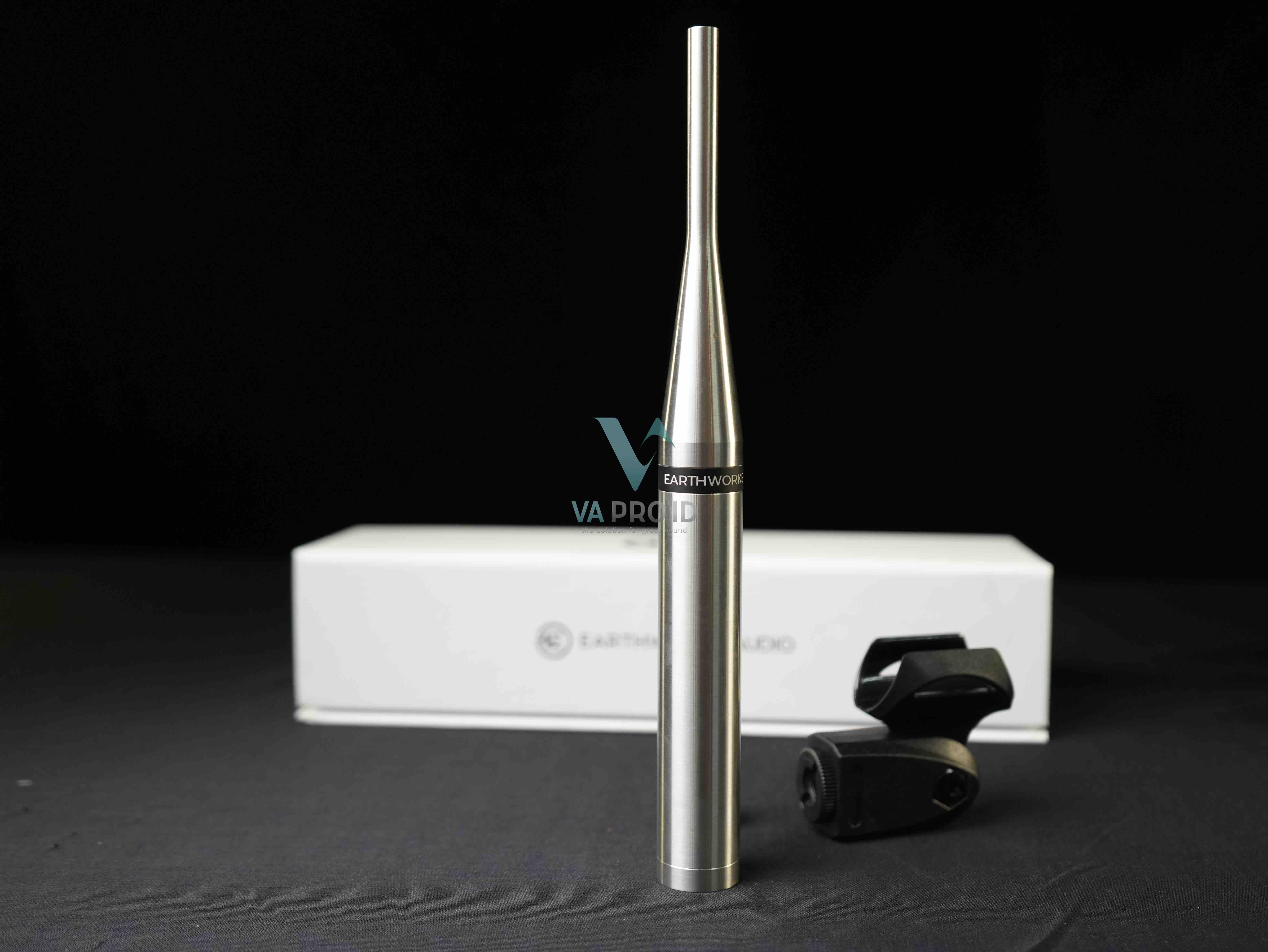

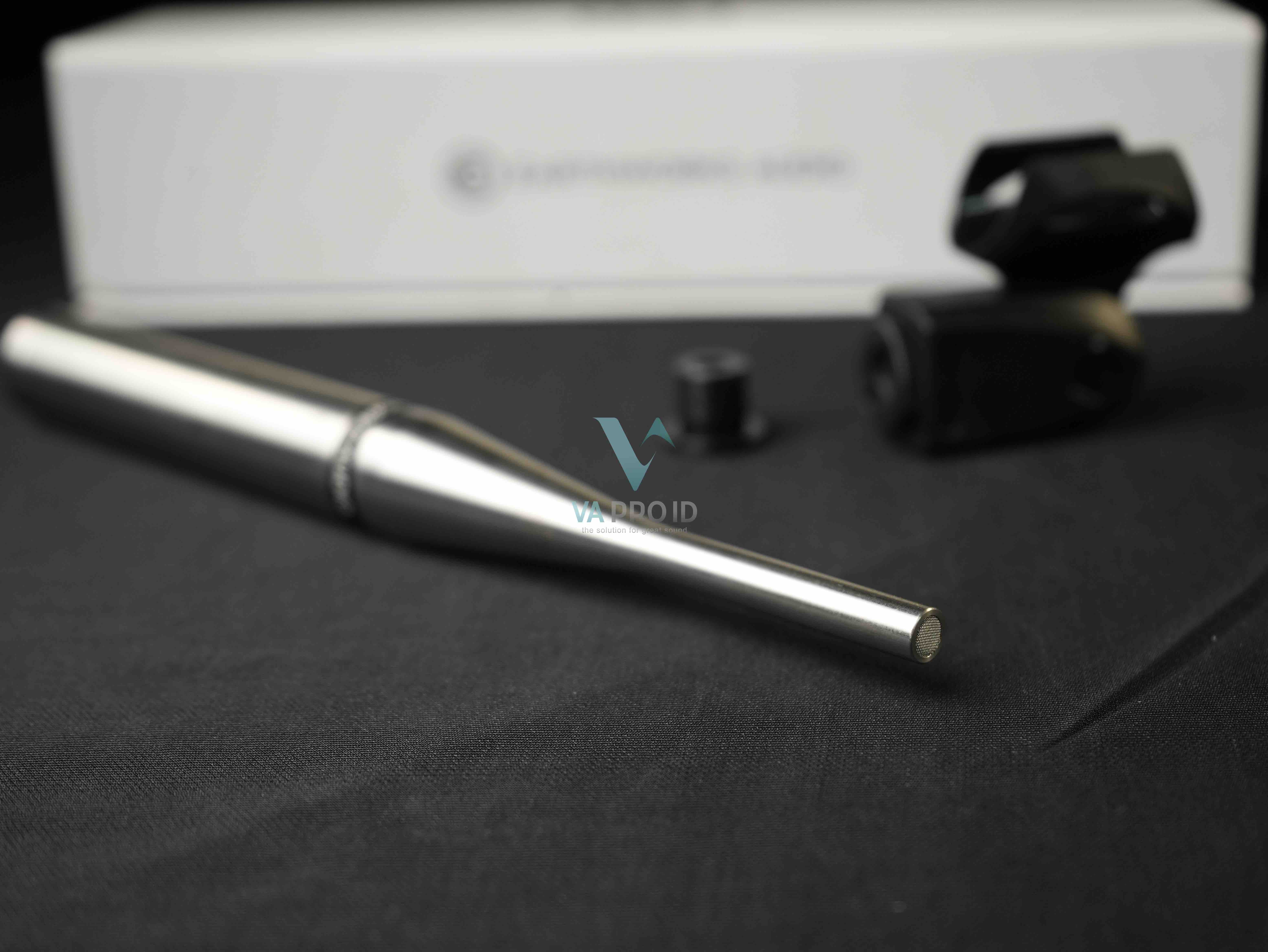

Microphone condensor measurement Earthworks M30

• FREQUENCY RESPONSE: 3Hz to 30kHz

• POLAR PATTERN: Omnidirectional

• SENSITIVITY: 34mV/Pa (-29dBV/Pa)

• POWER REQUIREMENTS: 24-48V Phantom, 10mA

• MAX ACOUSTIC INPUT: 140dB SPL

• OUTPUT: XLR (pin 2+)

• OUTPUT IMPEDANCE: 65Ω balanced (between pins 2 & 3)

• MIN OUTPUT LOAD: 600Ω between pins 2 & 3

• NOISE: 20dB SPL equivalent (A weighted)

• DIMENSIONS (L x D) : 229mm x 22mm (9.0 x .860 inches)

• WEIGHT: .5 lb. (225g)
