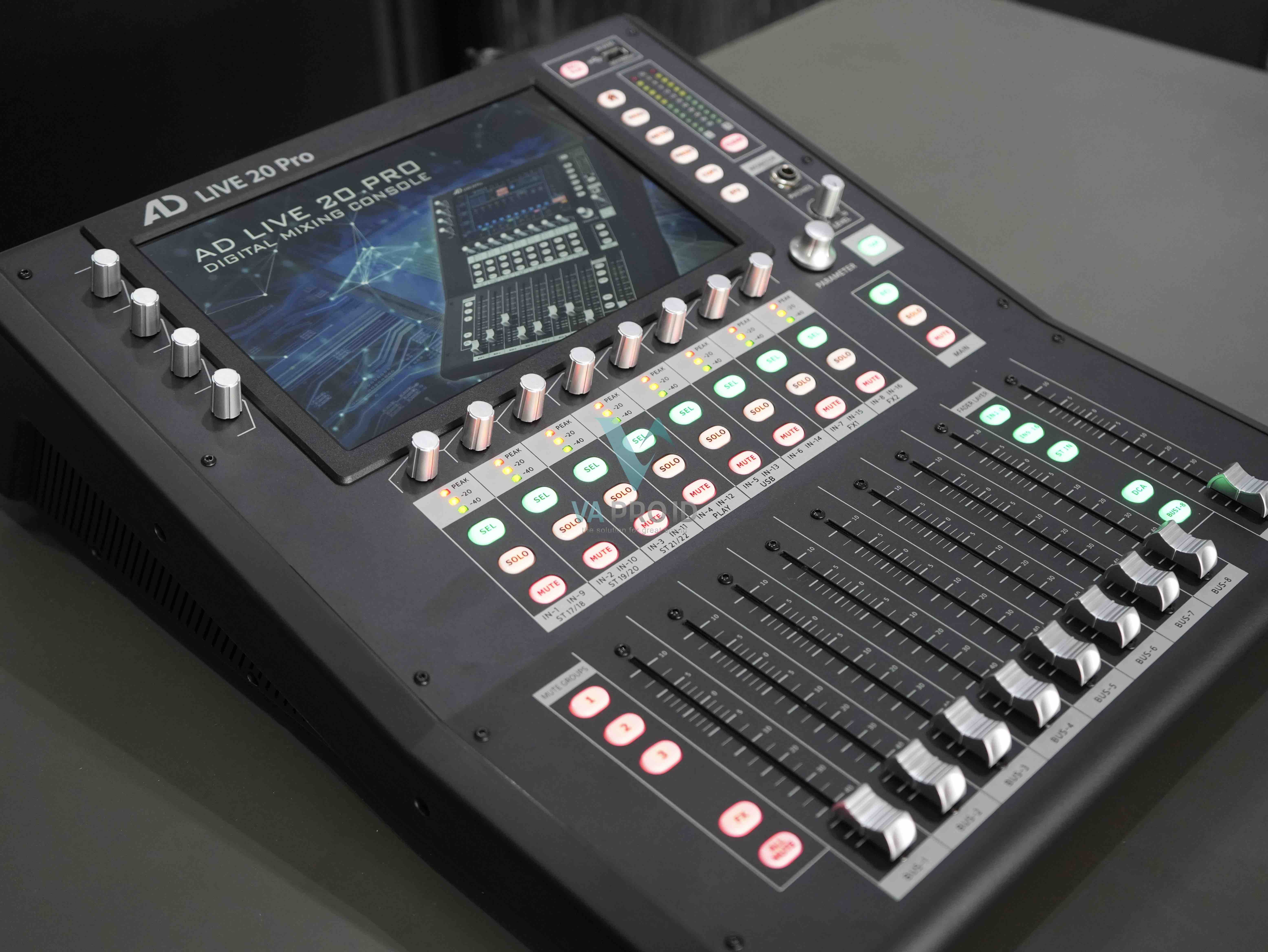

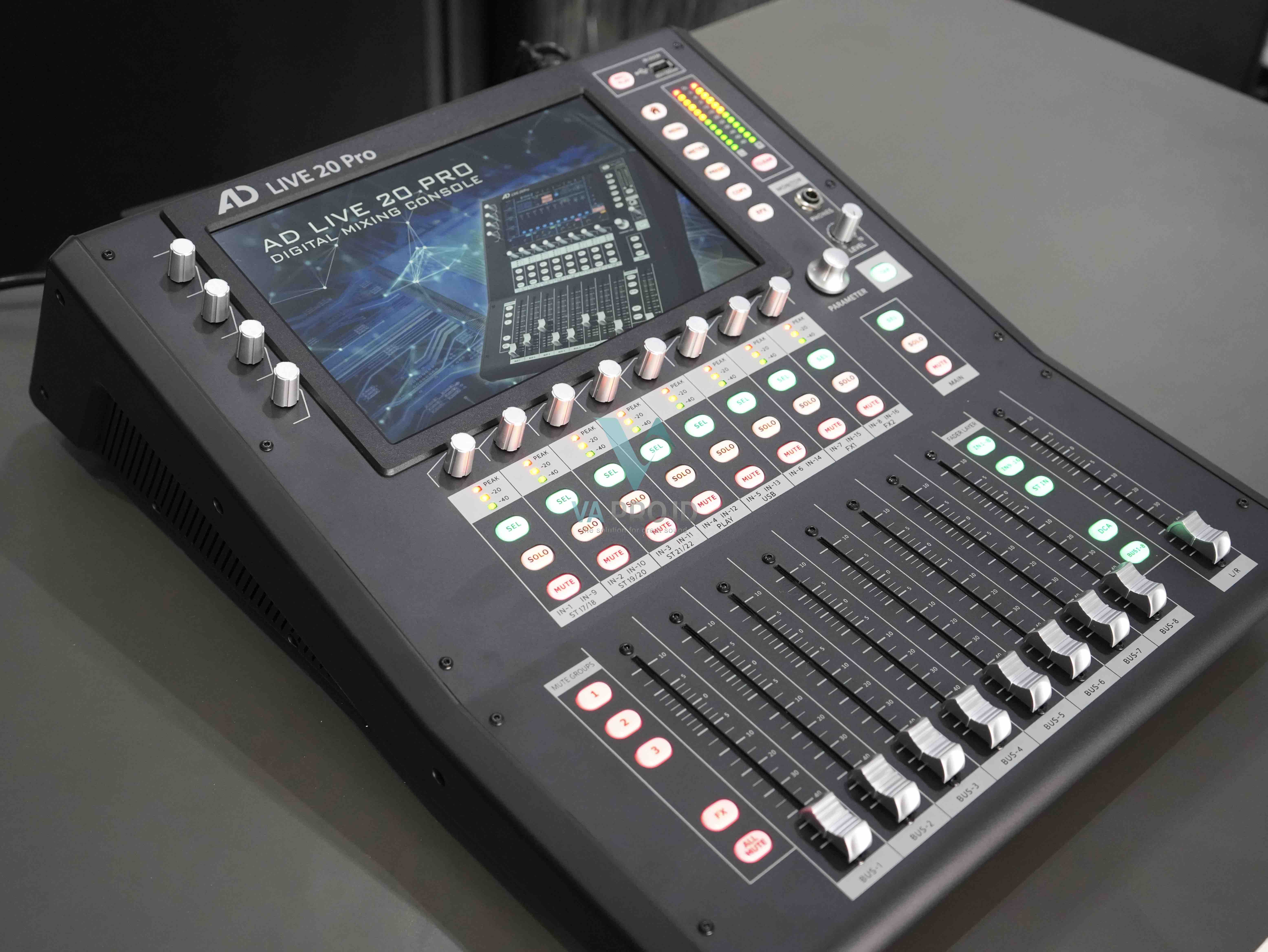

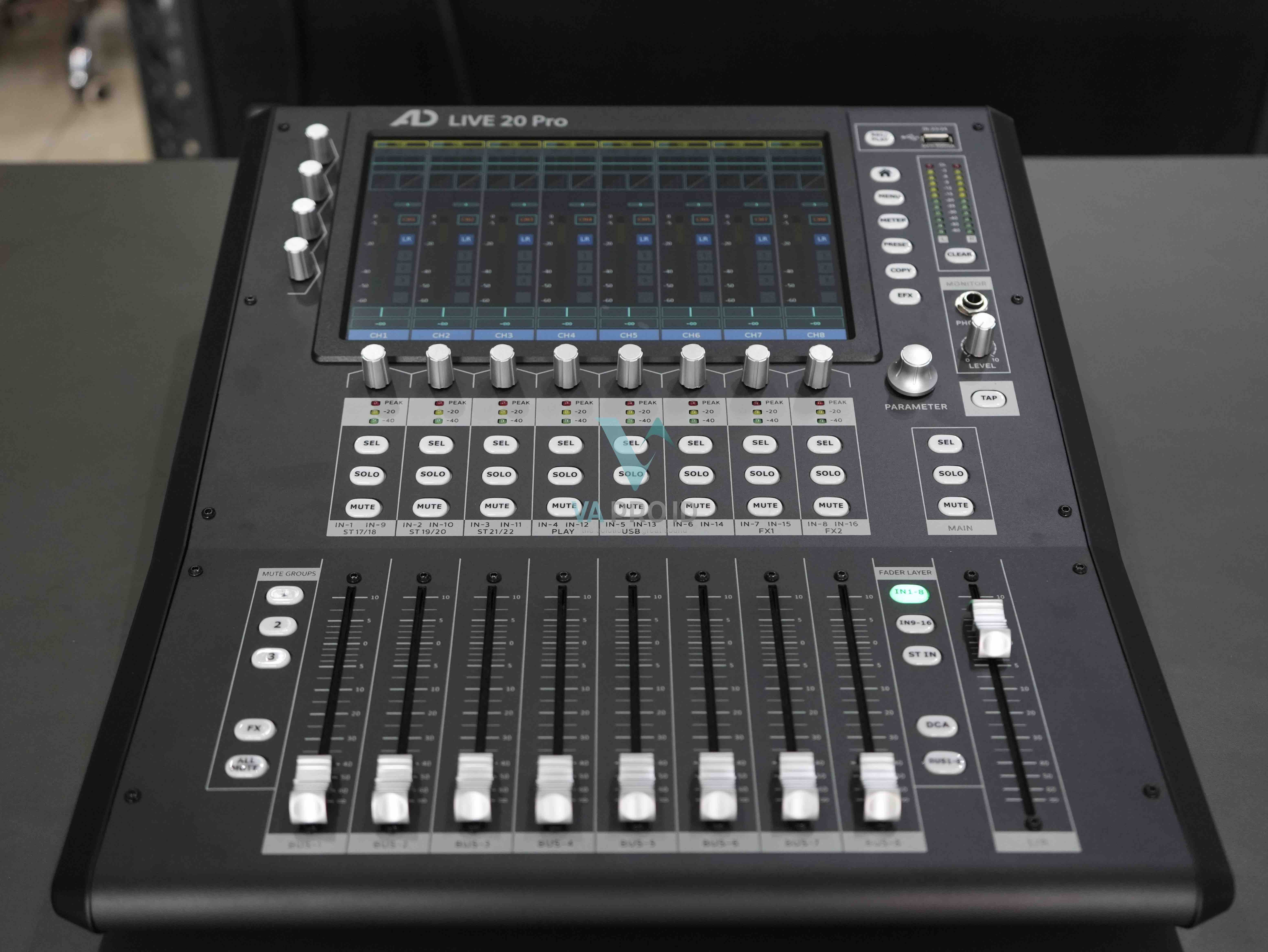

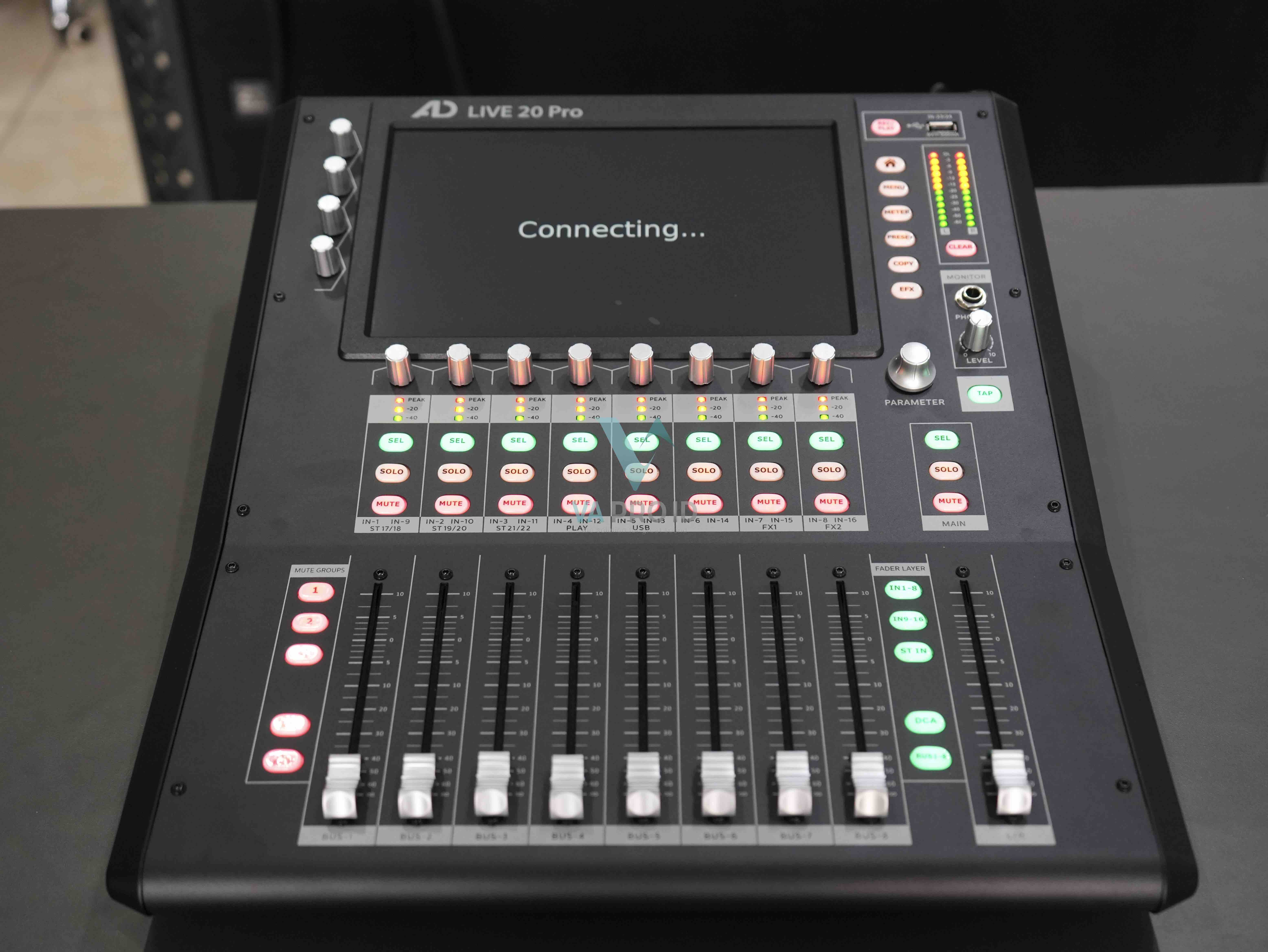

Mixer digital ad live 20 pro 16 chanel

Main features

• 26-channel input includes: 16 microphone inputs, 3 stereo inputs, 2 digital stereo inputs (USB sound card, USB playing).

• 14-circuit bus designs, with 8 independent editing DCA channels.

• 8-circuit BUS output channels, 1-circuit stereo main output, 1-circuit stereo monitor output, 3-circuit stereo digital outputs (AES / EBU, USB sound card, USBrecording).

• All input channels have independent low-cut, PEQ, compressor, noise gate, phase processing.

• All microphone input channels have high-quality programmable digital gain control and independent phantom power control.

• All BUS output channels have independent X-over, PEQ, compressor, delay processing, and support 2 independent 31-segnebt GEQ processing.

• The stereo main output channel has independent X-over, PEQ, compressor and delay processing, also with independent 31-segment GEQ processing.

• All input and output BUS channels can be freely linked to stereo state.

• The names and colors of all channel labels can be customized.

• All input and output channels PEQ, compressor, noise gate, with independent default store recall function, also support import and export functions through USB ash disk.

• All input and output channels with independent channel preset function, support channel preset and recall function, all channel preset  support import and export functions through USB ash disk.

• Built-in 2 professional stereo effector, With independent send bus, a variety of effect types to choose from.

• There is a built-in U disk player, which supports real-time stereo recording and play function.

• There is built-in USB sound card, which supports real-time recording and play function connected with PC

. • There are 3 programmable mute group buttons and 1 total effect mute group button, 1 BUS output mute key.

• Users can store and invoke scenarios. All scenarios can be imported and output using a USB ash drive.

• With independent administrator password and user password protection can be customized, the system can be managed by permission, the administrator password protection is valid for both local operations and mobile access.

• The 10-inch high-denition 1280 * 800 capacitive touch screen supports multi-point touch operation.

• 9 high-precision 100MM electric faders and 5 page turning management buttons.

• Built-in web server based on HTML5 technology has built-in Wi-Fi hotspot, and the cross-platform supports access from various mobile terminals such as IOS, Android, Windows, etc., and supports multi-screen interaction and full-featured operation.

• Support control management protocol and system integration applications.

• It can be tted with the specied support and can be installed on the standard cabinet
