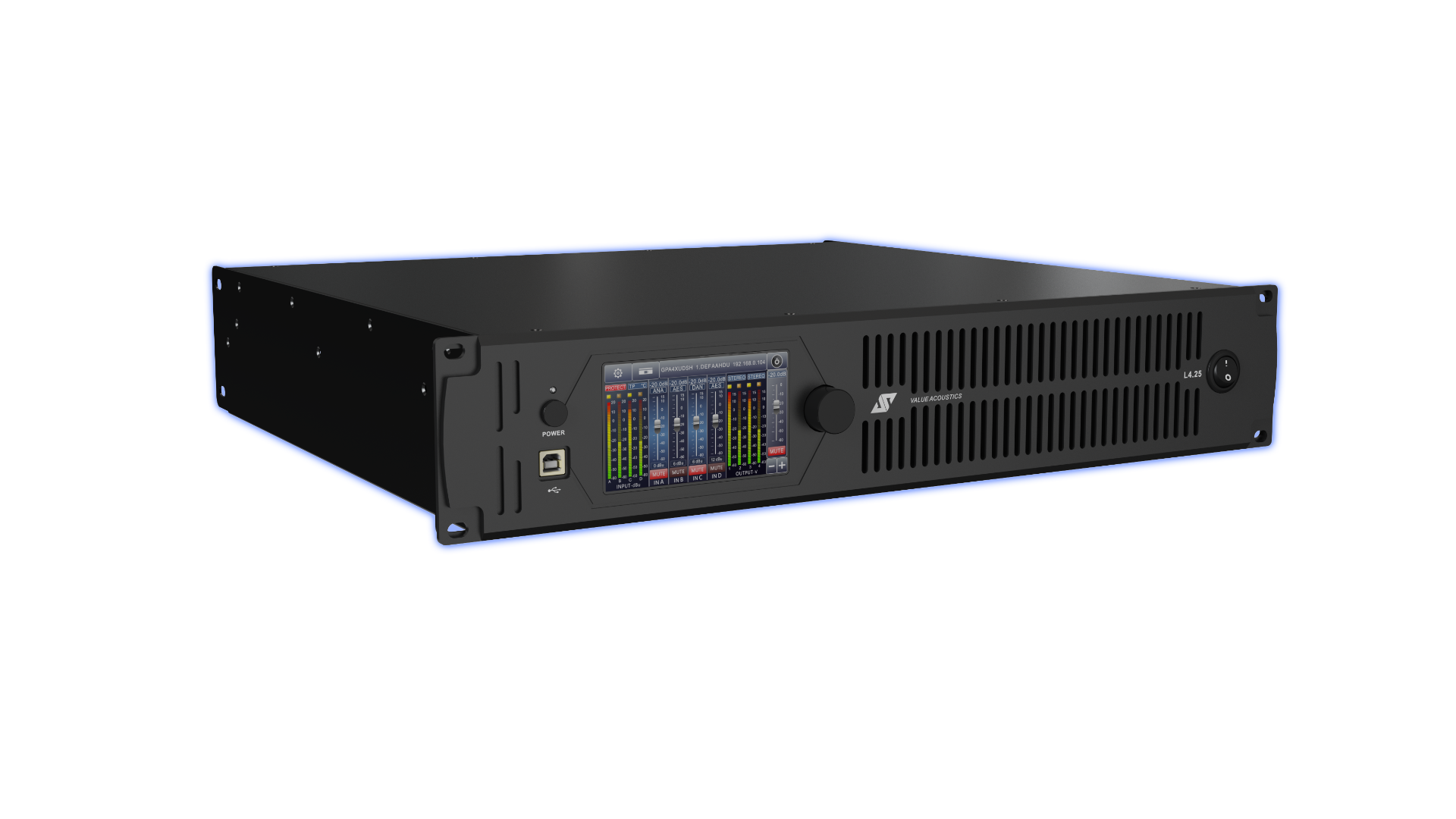

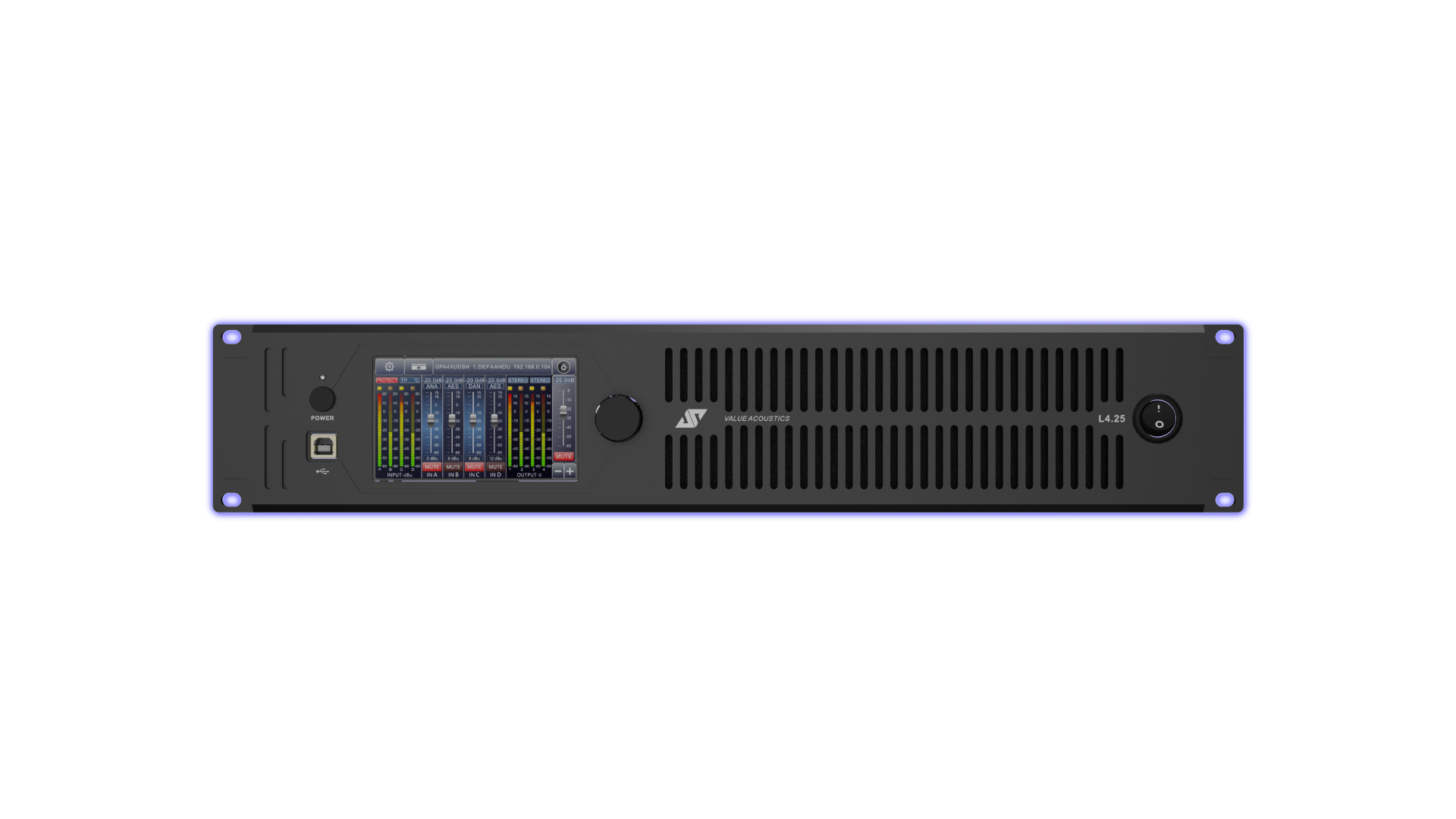

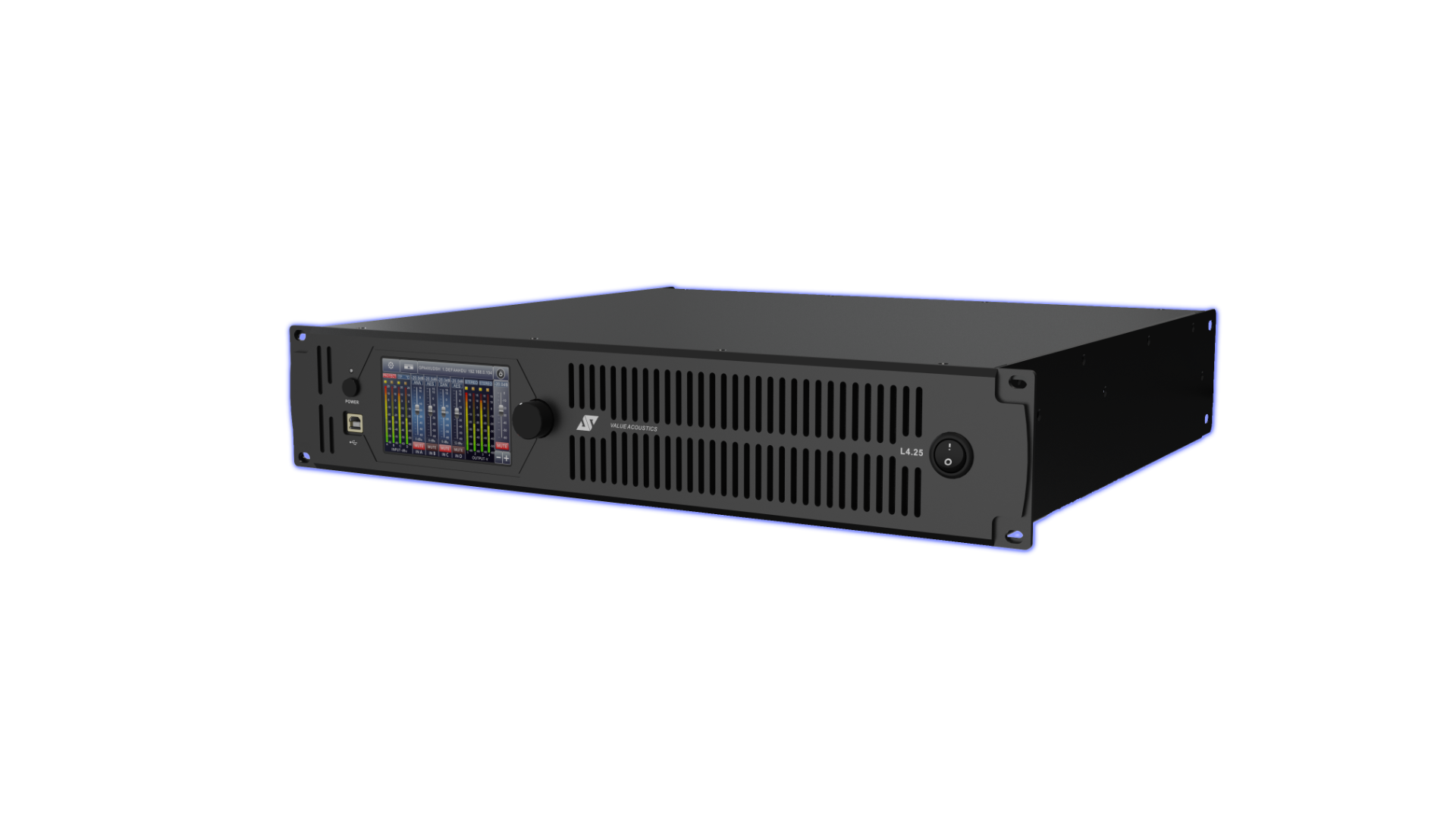

Power amplifier Value Acoustics L4.25 lengkap dsp prosessor 4channel

Fiture:

• Sampling rate 96K 32bit

• System latency <1ms

• Frequency response: 20Hz-20kHz(+-0.5dB, 8 Ω load, @1Wtofull power)

• THD+N <1%@1W to full power

• Max input level :20dBu

• SNR: 109dB@18dBu sensitivity

• DSP functions:

  • Noise gate, Parameter EQ,

  • Dynamic EQ, Matrix mixing, FIR

  • filter, Delay, Compressor, Limiter

  • FIR filter

  • up to 2048taps process

• Input and output connectors and control

• Input connectors

  • 4×XLR, analoG

  • 4×AES/EBU

• Output connectors

  • 4×XLR analog

  • 4×XLR AES/EBU, link out

• Dante network:

  • dual-port RJ45, Dante 4 RX signal in optional

• Power output  SpeakOn

• ControL TCP/IP, USB, GPIO in Phoenix

• Power output 4 Channel

  • 4×1500 watts@8Ω

  • 4×2500 watts@4Ω

  • 4×2500 watts@2Ω

  • Bridged : 2x3600 watts@4Ω, 2x3600 watts@8Ω

  • 100V output Max to 4×2500 watts

  • 70V output Max to 4×2500 watts

• Protect

  • Audio limiter, high temperature, DC, high

  • frequency, short circuit, back electromotive

  • force, peak current limiter, surge current limiter,

  • start delay, power breaker protection,

  • power supply over-voltage/under-voltage protection

• Physical

  • Power supply AC100~240V 50/60 Hz

  • Operating Environment-20 to 60℃

  • Dimension 483mm×463mm×88mm, 2U

  • Weight device 12.34kg, packaged 16,64kg
