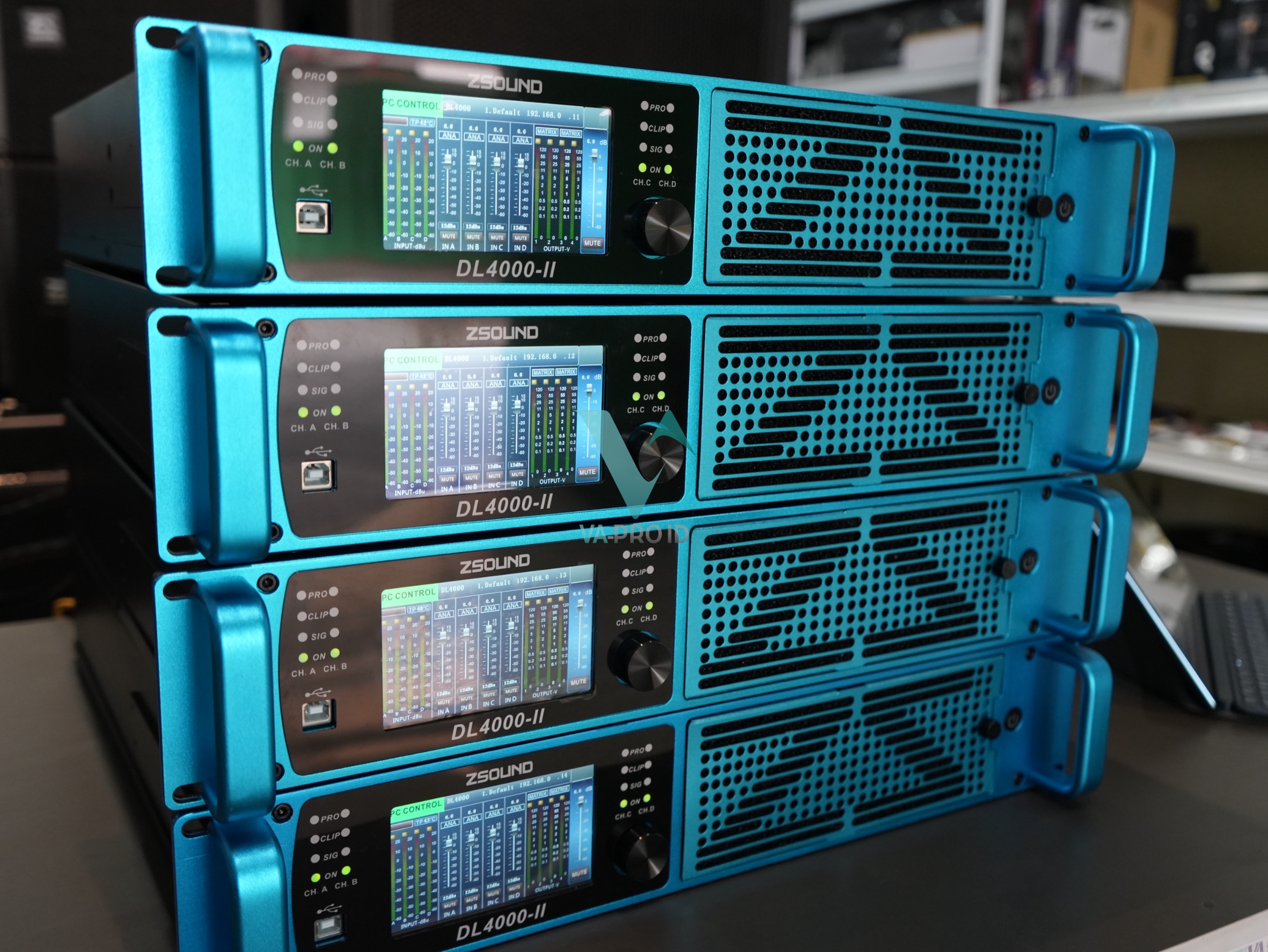

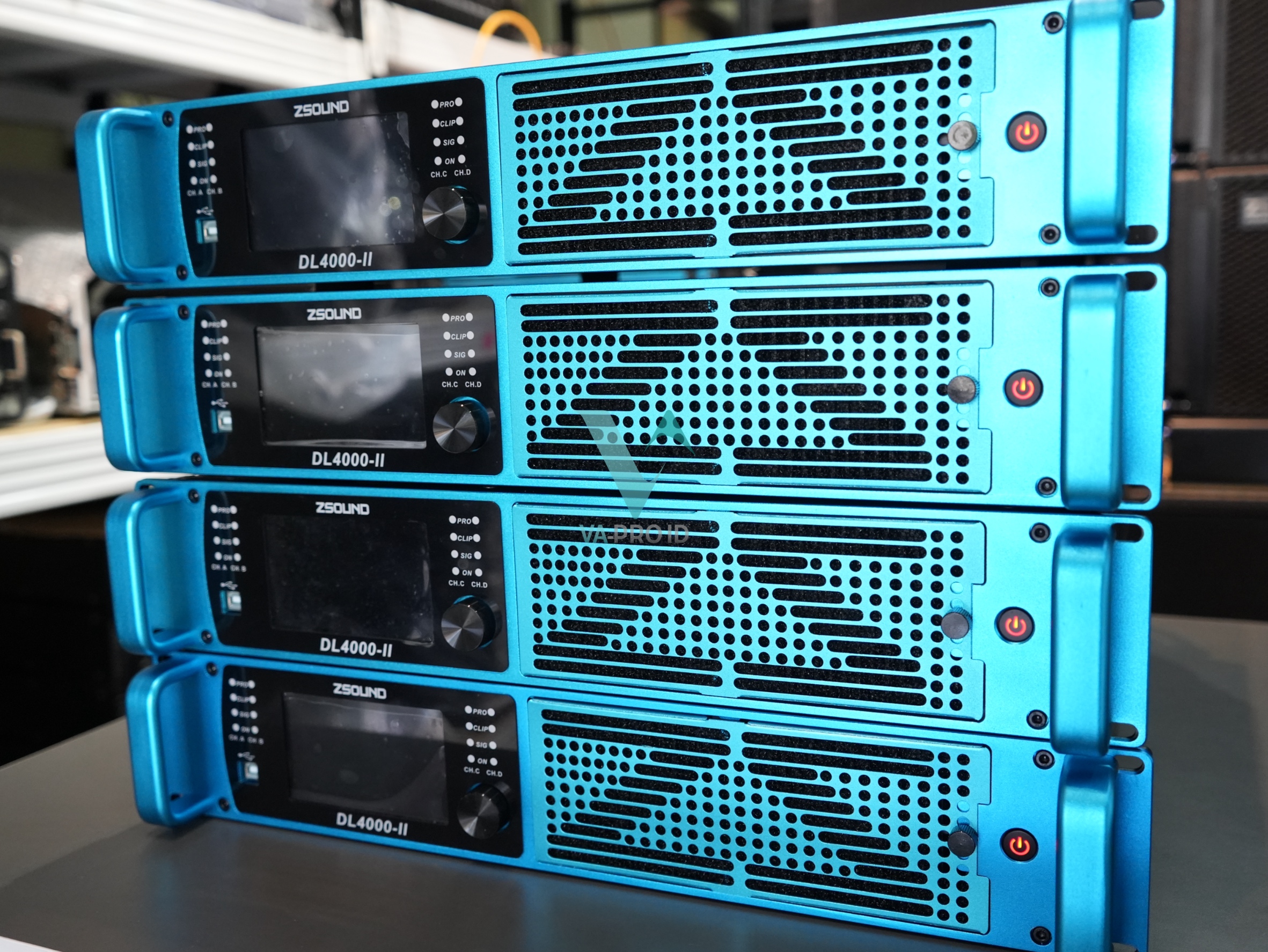

Power amplifier 4chanel Zsound DL4000II build in dsp

Power amp 4CHANNEL class D

• 8Ω Stereo power 4×2000W

• 4Ω Stereo power 4×4000W

• 8Ω Bridged Mono power        2×9600W

• 4Ω Bridged Mono power        2×13500W

Audio Performance

• Frequency Response: 20 Hz - 20 kHz ±1 dB

• THD+N (Rated Power, 4Ω / 1 kHz): 0.82%

• Signal-to-Noise Ratio: 100 dB

• Amplifier Gain (1 kHz, 80 mV): 36 dB (±0.5 dB)

Connectivity

• Input Connectors (per channel): Male XLR & Female XLR (Neutrik)

• Input Impedance: 20 kΩ Balanced / 10 kΩ Unbalanced

• Output Connectors: NL4WP connectors

Design and Features

• Output Electric Circuit Type: Class D circuit

• Cooling System: Airflow from front to back, Forced cooling

• DSP Capable: With DSP

• Work Instructions: LED and LCD display indication + capacitive touch

• Online Interface: USB/485

• Channel Separation: ≥70 dB

Power Requirements

• Power Requirement: 200-240V 50Hz

Dimensions and Weight

• Dimensions: 483 × 478 × 88 mm
